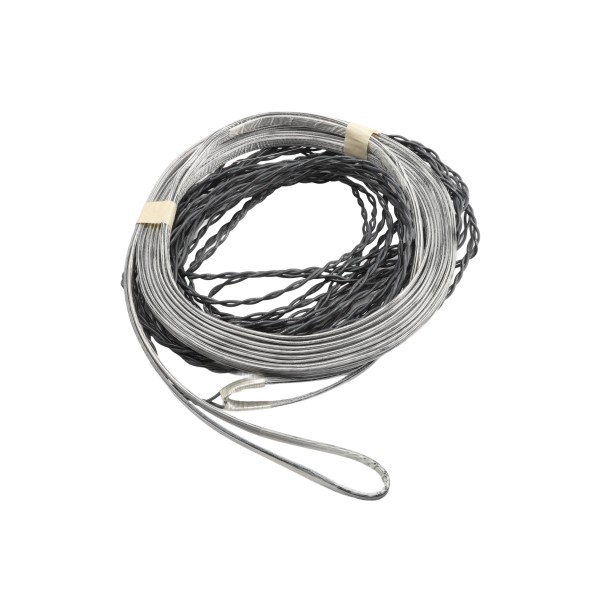

National Loop Co. 34' (5' X 12') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 17' Wide Driveways - X-NL17-14

National Loop Co. 34' (5' X 12') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 17' Wide Driveways - X-NL17-14

Day or night, the National Loop Co. 34' Direct Burial Vehicle Detection Loop with its custom length lead-in spots cars and trucks without any physical contact. It lays flat on the sub-base of a new drive or lot, and the paving material covers it completely. Its 5' x 12' shape adds up to 34' of wire, the right footprint for 17' wide driveways including homes with boat or trailer parking and newer subdivision drives.
Part Number: X-NL17-14
$156.56 each $156.56 each

Price From: $156.56

Details

National Loop Co. 34' (5' X 12') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 17' Wide Driveways - X-NL17-14

Skip the slot cutting entirely: the National Loop Co. 34' Direct Burial Vehicle Detection Loop with Custom Length Lead-In lays on the sub-base and gets paved over with the new surface. Wired to a compatible automated system, the loop detects the metal of any vehicle over the sensing area so the gate stops or reverses before contact. Because it ships encased in heavy-duty, liquid-tight conduit, the loop lays directly on the graded sub-base and is then paved over under fresh asphalt, concrete, or gravel. The 12' side covers the travel lane with roughly 2' 6" of clearance on each side, and the 5' side reads vehicles as they roll through, making it a fit for 2-car drives in newer subdivisions and homes with boat or trailer parking.

Features:

  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations

Specifications:

  • Loop type: Direct burial
  • Total loop length: 34'
  • Loop dimensions: 5' x 12'
  • Lead-in length: Custom length
  • Wire gauge: 14 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 17'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL17-14?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Loop Length Size 5' X 12'
Total Loop Length 34'
SKU X-NL17-14
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
