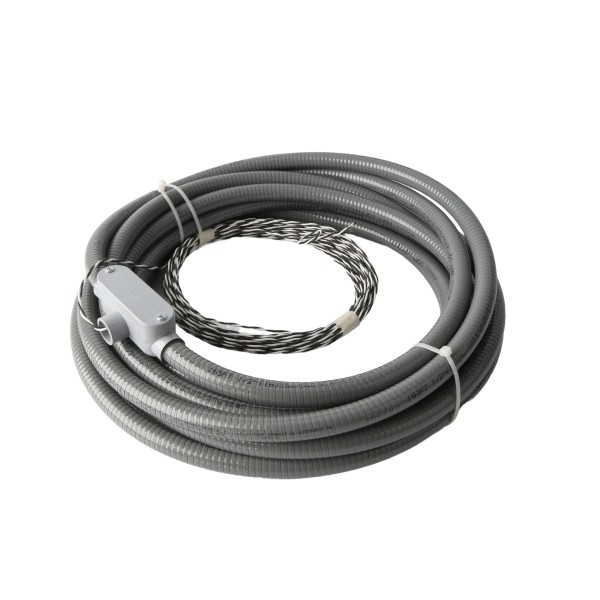

National Loop Co. 38' (6' X 13') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 19' Wide Driveways - E-NL19-18

National Loop Co. 38' (6' X 13') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 19' Wide Driveways - E-NL19-18

Monitoring the driveway around the clock, the National Loop Co. 38' Direct Burial Vehicle Detection Loop with its custom length lead-in provides the dependable vehicle detection safe gate operation depends on. The loop rests at grade and gets sealed in by the paving that follows, asphalt, concrete, or gravel included. With 38' of wire laid out 6' x 13', it covers the lane on 19' wide driveways such as estate-style rural homes and 2-car drives with walkway space.
Part Number: E-NL19-18

* Required Fields

$166.02 each $166.02 each

Price From: $166.02

Details

National Loop Co. 38' (6' X 13') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 19' Wide Driveways - E-NL19-18

For driveways getting a fresh surface, the National Loop Co. 38' Direct Burial Vehicle Detection Loop with Custom Length Lead-In provides vehicle detection without cutting into the finished pavement. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse. Because it ships encased in heavy-duty, liquid-tight conduit, the loop lays directly on the graded sub-base and is then paved over under fresh asphalt, concrete, or gravel. Its 13' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to 2-car drives with extra walkway room and estate-style rural homes.

Features:

  • Saves labor cost compared with winding a loop by hand in the field
  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment

Specifications:

  • Loop type: Direct burial
  • Total loop length: 38'
  • Loop dimensions: 6' x 13'
  • Lead-in length: Custom length
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 19'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL19-18?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Loop Length Size 6' X 13'
Total Loop Length 38'
SKU E-NL19-18
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
