National Loop Co. 16' (2' X 6') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 8' Wide Driveways - E-NL08-18

National Loop Co. 16' (2' X 6') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 8' Wide Driveways - E-NL08-18

Monitoring the driveway around the clock, the National Loop Co. 16' Direct Burial Vehicle Detection Loop with its custom length lead-in supplies the vehicle detection gate systems rely on. Plan it into new construction or a repave, because it needs to sit under the asphalt, concrete, or gravel. The 16' loop wraps into a 2' x 6' rectangle that fits 8' wide drives, including single-car gravel drives in rural areas and tight older lots.
Part Number: E-NL08-18

* Required Fields

$130.98 each $130.98 each

Price From: $130.98

Details

National Loop Co. 16' (2' X 6') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 8' Wide Driveways - E-NL08-18

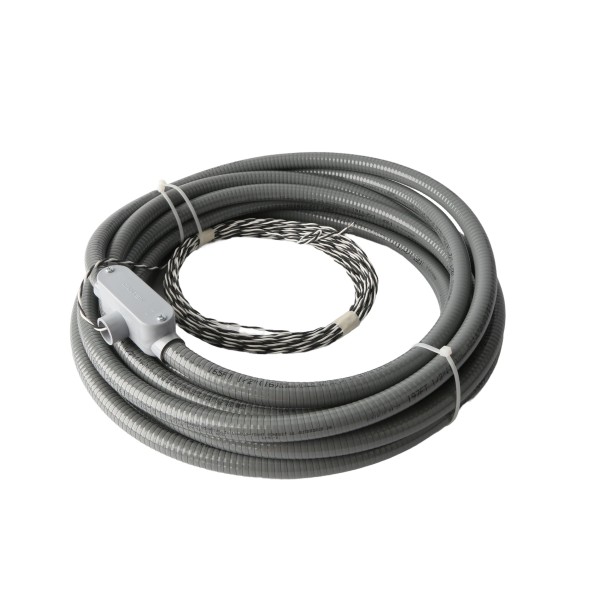

Because it ships fully assembled in heavy-duty conduit, the National Loop Co. 16' Direct Burial Vehicle Detection Loop with Custom Length Lead-In is ready to lay down the moment the sub-base is graded. Working through a compatible loop detector, it detects the metal mass of vehicles above. Installation is a lay-and-pave job: set the loop on the graded sub-base, run the lead-in to the detector, and let the paving crew cover it. With the 6' side crossing the lane and about 1' of clearance per edge, and the 2' side capturing vehicles in the direction of travel, the layout fits older urban row homes, narrow driveways, and single-car gravel drives in rural areas.

Features:

  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations
  • Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters
  • Wound from one continuous, non-spliced wire, leaving no splice point between the loop and lead-in to fail

Specifications:

  • Loop type: Direct burial
  • Total loop length: 16'
  • Loop dimensions: 2' x 6'
  • Lead-in length: Custom length
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 8'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL08-18?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Loop Length Size 2' X 6'
Total Loop Length 16'
SKU E-NL08-18
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
