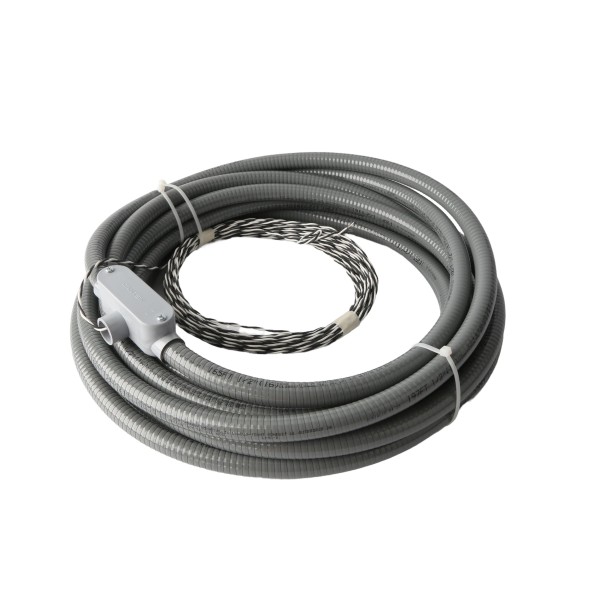

National Loop Co. 88' (6' X 38') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 44' Wide Driveways - E-NL44-18

National Loop Co. 88' (6' X 38') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 44' Wide Driveways - E-NL44-18

Keeping an automatic gate both safe and convenient, the National Loop Co. 88' Direct Burial Vehicle Detection Loop with a custom length lead-in senses the metal of any car or truck that crosses it. It goes into the ground before the surface does, buried under new asphalt, concrete, or gravel. Total wire runs 88' in a 6' x 38' pattern made for 44' wide driveways, including logistics and warehouse entrances, large farm commodity yards, and wide municipal entries.
Part Number: E-NL44-18

* Required Fields

$287.67 each $287.67 each

Price From: $287.67

Details

National Loop Co. 88' (6' X 38') Direct Burial Vehicle Detection Loop with Custom Length Lead-In for 44' Wide Driveways - E-NL44-18

Contractors laying new asphalt, concrete, or gravel can set the National Loop Co. 88' Direct Burial Vehicle Detection Loop with Custom Length Lead-In directly on the sub-base and pave right over it. Wired to a compatible automated system, the loop detects the metal of any vehicle over the sensing area so the gate stops or reverses before contact. Crews place the loop on the prepared sub-base before paving, and the new asphalt, concrete, or gravel surface locks it in place. With the 38' side crossing the lane and about 3' of clearance per edge, and the 6' side capturing vehicles in the direction of travel, the layout fits logistics/warehouse entrances, large farm commodity yards, and wide municipal entries.

Features:

  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations
  • Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters
  • Wound from one continuous, non-spliced wire, leaving no splice point between the loop and lead-in to fail
  • Heavy-duty, liquid-tight conduit shields the loop from sharp stones, chemicals, ground heaving, and harsh weather
  • Fully assembled at the factory, so there is nothing to wind, count, or connect before paving

Specifications:

  • Loop type: Direct burial
  • Total loop length: 88'
  • Loop dimensions: 6' x 38'
  • Lead-in length: Custom length
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 44'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL44-18?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Loop Length Size 6' X 38'
Total Loop Length 88'
SKU E-NL44-18
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
