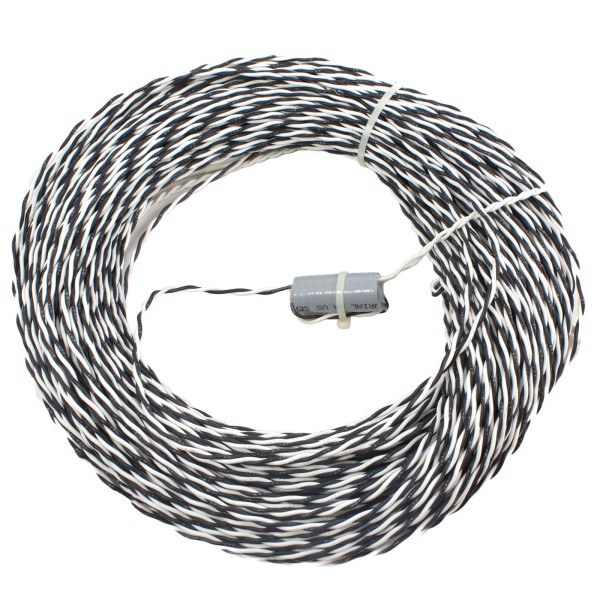

National Loop Co. 76' (6' X 32') Saw Cut Vehicle Detection Loop with 250' Lead-In for 38' Wide Driveways - X-NL38-18-250

Installing the National Loop Co. 76' Saw Cut Vehicle Detection Loop with 250' Lead-In means sawing one slot, laying in a preformed 18 AWG loop, and sealing it. Once a loop detector reads its signal, the loop covers the non-contact vehicle detection that UL 325 requires as one of the two means of entrapment protection for automated gates. Installers saw a 3/16" by 1" deep slot into the existing surface, drop the prewound loop in, and seal the slot against moisture. With the 32' side crossing the lane and about 3' of clearance per edge, and the 6' side capturing vehicles in the direction of travel, the layout fits wide equipment yards, grain elevators, agricultural co-op entrances, and large commercial plaza entries.

Features:

• Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
• One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
• Factory-set turn count means optimal read range without any on-site adjustment
• Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
• Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
• More cost-effective than hand-wound loop installations
• Fills the non-contact detection role UL 325 assigns to vehicle loops in a 2-device entrapment protection system

Specifications:

• Loop type: Saw cut
• Total loop length: 76'
• Loop dimensions: 6' x 32'
• Lead-in length: 250'
• Slot size: 3/16" wide x 1" deep
• Wire gauge: 18 AWG
• Wire material: Polypropylene-wrapped copper wire
• Best-suited driveway width: 38'
• Manufacturer: National Loop Company (NLC)
• Made in America: Yes
