National Loop Co. 64' (6' X 26') Saw Cut Vehicle Detection Loop with 125' Lead-In for 32' Wide Driveways - X-NL32-18-125

National Loop Co. 64' (6' X 26') Saw Cut Vehicle Detection Loop with 125' Lead-In for 32' Wide Driveways - X-NL32-18-125

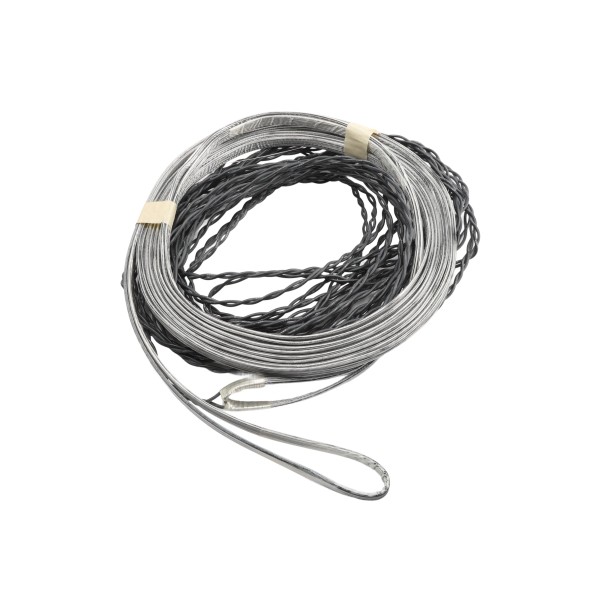

Day or night, the National Loop Co. 64' Saw Cut Vehicle Detection Loop with 125' of lead-in wire monitors the drive for traffic of any size. Because it arrives preformed, it goes straight into a 1" saw-cut groove without any winding on site. At 64' of total loop length, the 6' x 26' layout fits 32' wide driveways, from light industrial driveways and church or school lot entries.
Part Number: X-NL32-18-125
$250.80 each $250.80 each
OR


Details

National Loop Co. 64' (6' X 26') Saw Cut Vehicle Detection Loop with 125' Lead-In for 32' Wide Driveways - X-NL32-18-125

Contractors reach for the National Loop Co. 64' Saw Cut Vehicle Detection Loop with 125' Lead-In when an existing asphalt or concrete drive needs reliable vehicle detection. Teamed with a loop detector, it gives the gate operator the presence detection it needs, so the gate reverses or holds open while a vehicle sits in the path. Fitting takes one shallow saw cut: a 3/16" slot, 1" deep, cleaned out, filled with the loop, and sealed with loop sealant. With the 26' side crossing the lane and about 3' of clearance per edge, and the 6' side capturing vehicles in the direction of travel, the layout fits light industrial driveways and church or school lot entries.

Features:

  • Saves labor cost compared with winding a loop by hand in the field
  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
  • Factory-set turn count means optimal read range without any on-site adjustment
  • Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
  • Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding

Specifications:

  • Loop type: Saw cut
  • Total loop length: 64'
  • Loop dimensions: 6' x 26'
  • Lead-in length: 125'
  • Slot size: 3/16" wide x 1" deep
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 32'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL32-18-125?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Saw Cut
Lead-In Length 125'
Loop Length Size 6' X 26'
Total Loop Length 64'
Wire Size 3/16"
SKU X-NL32-18-125
Product Type Saw Cut Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Access Control, Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
