The National Loop Co. 40' Saw Cut Vehicle Detection Loop with 50' of lead-in to reach the detector signals the gate operator the moment traffic appears. No repaving is needed, because the loop lays into a slim saw cut and seals flush with the surface. Its 6' x 14' shape adds up to 40' of wire, the right footprint for 20' wide driveways including estate homes with two swing gates and working ranch entrances.
Part Number: X-NL20-18-50
$168.02 each $168.02 each
OR


Details

National Loop Co. 40' (6' X 14') Saw Cut Vehicle Detection Loop with 50' Lead-In for 20' Wide Driveways - X-NL20-18-50

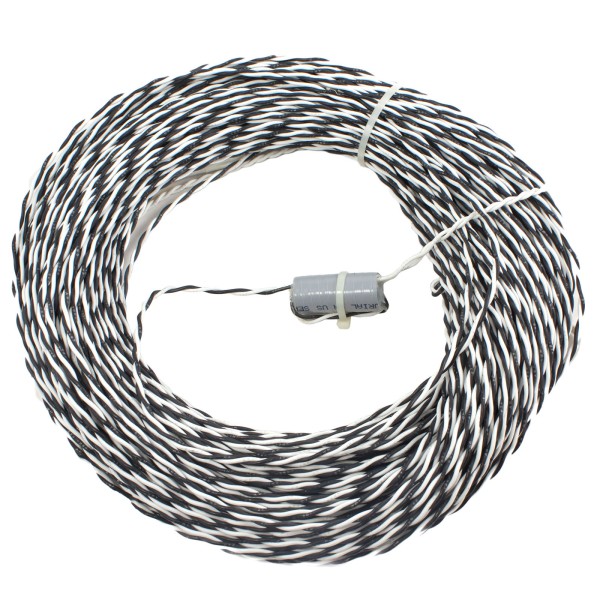

Designed to sense vehicles without any surface teardown, the National Loop Co. 40' Saw Cut Vehicle Detection Loop with 50' Lead-In is a preformed 18 AWG loop that drops into a saw-cut slot. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse. Fitting takes one shallow saw cut: a 3/16" slot, 1" deep, cleaned out, filled with the loop, and sealed with loop sealant. Its 14' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to ranch entrances, farm properties, and estate homes with dual swing gates.

Features:

  • Wound from one continuous, non-spliced length of Polypropylene-insulated wire, leaving no splice point between the loop and lead-in to fail
  • Predetermined number of machine-wound turns removes the guesswork of achieving optimal read range
  • Neatly stacked turns accept loop sealant completely, locking out moisture for long service life
  • Optimizes read range, eliminates faulty signals, and minimizes callbacks
  • Saves labor cost compared with winding a loop by hand in the field
  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters

Specifications:

  • Loop type: Saw cut
  • Total loop length: 40'
  • Loop dimensions: 6' x 14'
  • Lead-in length: 50'
  • Slot size: 3/16" wide x 1" deep
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 20'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL20-18-50?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Saw Cut
Lead-In Length 50'
Loop Length Size 6' X 14'
Total Loop Length 40'
Wire Size 3/16"
SKU X-NL20-18-50
Product Type Saw Cut Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Access Control, Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
