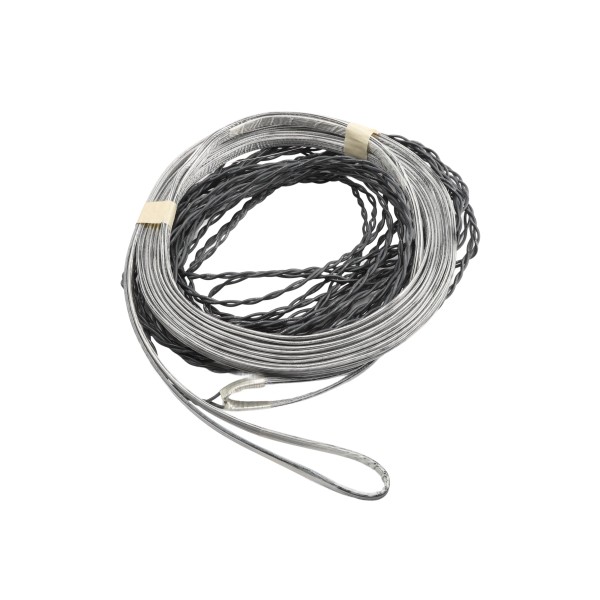

National Loop Co. 36' (6' X 12') Saw Cut Vehicle Detection Loop with 175' Lead-In for 18' Wide Driveways - X-NL18-18-175

National Loop Co. 36' (6' X 12') Saw Cut Vehicle Detection Loop with 175' Lead-In for 18' Wide Driveways - X-NL18-18-175

No batteries, no lenses, no line of sight, and the National Loop Co. 36' Saw Cut Vehicle Detection Loop with a 175' lead-in knows when a vehicle is sitting in the lane. Crews cut a narrow channel in the finished pavement, set the preformed wire inside, and seal it against moisture. Total wire runs 36' in a 6' x 12' pattern made for 18' wide driveways, including roomy 2-car driveways and small commercial entries.
Part Number: X-NL18-18-175
$235.52 each $235.52 each
OR


Details

National Loop Co. 36' (6' X 12') Saw Cut Vehicle Detection Loop with 175' Lead-In for 18' Wide Driveways - X-NL18-18-175

Sized to match a specific driveway width, the National Loop Co. 36' Saw Cut Vehicle Detection Loop with 175' Lead-In is a factory-wound 18 AWG loop for retrofit installations. Teamed with a loop detector, it gives the gate operator the presence detection it needs, so the gate reverses or holds open while a vehicle sits in the path. Installers saw a 3/16" by 1" deep slot into the existing surface, drop the prewound loop in, and seal the slot against moisture. Its 12' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to roomy 2-car driveways and small commercial entries.

Features:

  • Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
  • Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
  • More cost-effective than hand-wound loop installations
  • Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters
  • Wound from one continuous, non-spliced length of Polypropylene-insulated wire, leaving no splice point between the loop and lead-in to fail
  • Predetermined number of machine-wound turns removes the guesswork of achieving optimal read range

Specifications:

  • Loop type: Saw cut
  • Total loop length: 36'
  • Loop dimensions: 6' x 12'
  • Lead-in length: 175'
  • Slot size: 3/16" wide x 1" deep
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 18'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL18-18-175?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Saw Cut
Lead-In Length 175'
Loop Length Size 6' X 12'
Total Loop Length 36'
Wire Size 3/16"
SKU X-NL18-18-175
Product Type Saw Cut Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Access Control, Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
