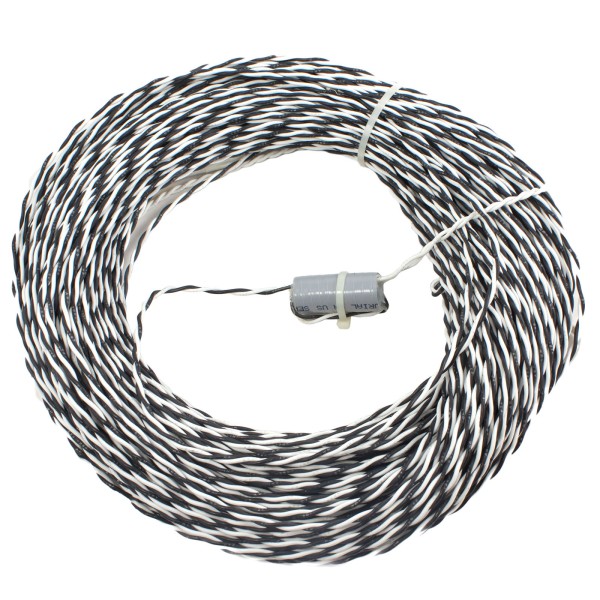

National Loop Co. 20' (4' X 6') Saw Cut Vehicle Detection Loop with 75' Lead-In for 10' Wide Driveways - X-NL10-18-75
Details
National Loop Co. 20' (4' X 6') Saw Cut Vehicle Detection Loop with 75' Lead-In for 10' Wide Driveways - X-NL10-18-75
Sized to match a specific driveway width, the National Loop Co. 20' Saw Cut Vehicle Detection Loop with 75' Lead-In is a factory-wound 18 AWG loop for retrofit installations. Connected to a loop detector, it reports every vehicle that crosses the sensing area, giving the gate operator dependable non-contact detection. Installation calls for sawing a 3/16" slot 1" deep into existing asphalt or concrete, laying the loop in the slot, and sealing it, with no hand-winding or turn counting required. With the 6' side crossing the lane and about 2' of clearance per edge, and the 4' side capturing vehicles in the direction of travel, the layout fits standard single-car suburban homes, duplex driveways, and small farm entrances.
Features:
- Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
- One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
- Factory-set turn count means optimal read range without any on-site adjustment
- Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
- Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
- More cost-effective than hand-wound loop installations
Specifications:
- Loop type: Saw cut
- Total loop length: 20'
- Loop dimensions: 4' x 6'
- Lead-in length: 75'
- Slot size: 3/16" wide x 1" deep
- Wire gauge: 18 AWG
- Wire material: Polypropylene-wrapped copper wire
- Best-suited driveway width: 10'
- Manufacturer: National Loop Company (NLC)
- Made in America: Yes
| Loop Type | Saw Cut |
|---|---|
| Lead-In Length | 75' |
| Loop Length Size | 4' X 6' |
| Total Loop Length | 20' |
| Wire Size | 3/16" |
| SKU | X-NL10-18-75 |
| Product Type | Saw Cut Preformed Loop |
|
Made In America
Learn More About BABA Certification
|
Yes |
| Ideal Application | Access Control, Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters |
| Material | Polypropylene-Wrapped Copper Wires |
| Manufacturer | National Loop Company - NLC |
| Specification Sheet | Download PDF file |
