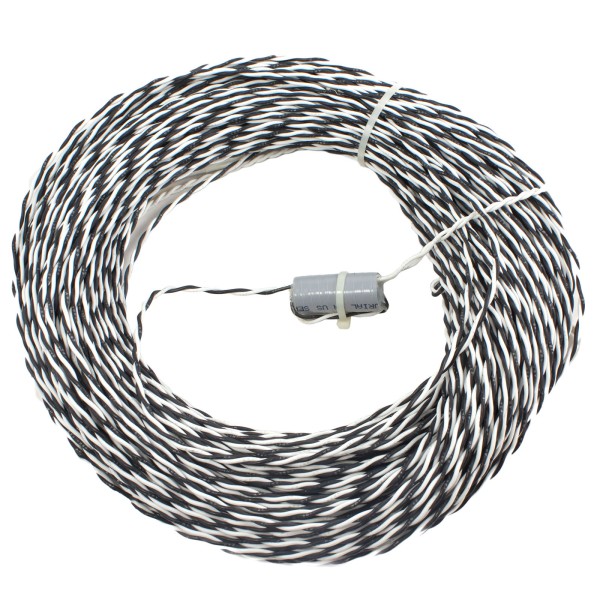

National Loop Co. 20' (4' X 6') Saw Cut Vehicle Detection Loop with 125' Lead-In for 10' Wide Driveways - X-NL10-18-125

Designed to sense vehicles without any surface teardown, the National Loop Co. 20' Saw Cut Vehicle Detection Loop with 125' Lead-In is a preformed 18 AWG loop that drops into a saw-cut slot. Teamed with a loop detector, it gives the gate operator the presence detection UL 325 counts as one of its two means of entrapment protection, so the gate reverses or holds open while a vehicle sits in the path. Fitting takes one shallow saw cut: a 3/16" slot, 1" deep, cleaned out, filled with the loop, and sealed with loop sealant. Its 6' side spans the travel lane while the 4' side runs in the direction of traffic, leaving roughly 2' of clearance on each edge, an arrangement well suited to standard single-car suburban homes, duplex driveways, and small farm entrances.

Features:

• Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
• One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
• Factory-set turn count means optimal read range without any on-site adjustment
• Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
• Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
• More cost-effective than hand-wound loop installations
• Fills the non-contact detection role UL 325 assigns to vehicle loops in a 2-device entrapment protection system

Specifications:

• Loop type: Saw cut
• Total loop length: 20'
• Loop dimensions: 4' x 6'
• Lead-in length: 125'
• Slot size: 3/16" wide x 1" deep
• Wire gauge: 18 AWG
• Wire material: Polypropylene-wrapped copper wire
• Best-suited driveway width: 10'
• Manufacturer: National Loop Company (NLC)
• Made in America: Yes
