National Loop Co. 84' (6' X 36') Direct Burial Vehicle Detection Loop with 200' Lead-In for 42' Wide Driveways - X-NL42-14-200

National Loop Co. 84' (6' X 36') Direct Burial Vehicle Detection Loop with 200' Lead-In for 42' Wide Driveways - X-NL42-14-200

The National Loop Co. 84' Direct Burial Vehicle Detection Loop with 200' Lead-In alerts the gate operator the instant a vehicle crosses the wire. Rather than cutting finished pavement, you set it on the base and let the new surface lock it in place. Shaped 6' x 36', its 84' of 14 AWG wire spans the lane on 42' wide driveways, from wide industrial driveways, truck wash facilities, and large church or school parking lots.
Part Number: X-NL42-14-200
$397.89 each $397.89 each
OR


Details

National Loop Co. 84' (6' X 36') Direct Burial Vehicle Detection Loop with 200' Lead-In for 42' Wide Driveways - X-NL42-14-200

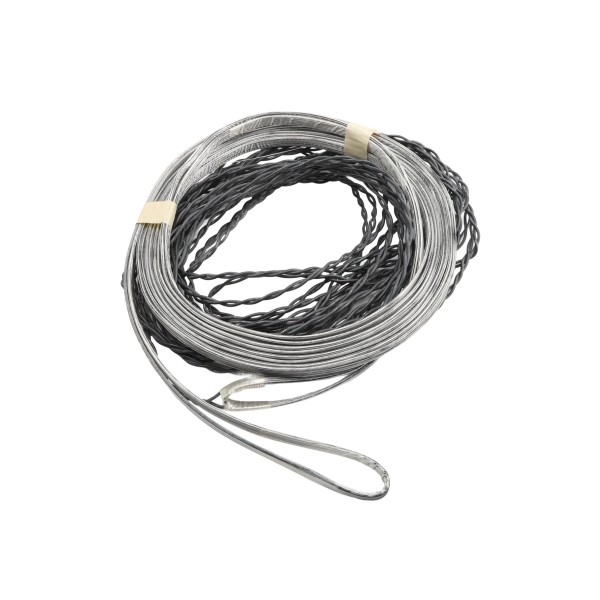

Because it ships fully assembled in heavy-duty conduit, the National Loop Co. 84' Direct Burial Vehicle Detection Loop with 200' Lead-In is ready to lay down the moment the sub-base is graded. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse. The pave-over design means no slot cutting: the loop goes down on the graded base and the fresh surface finishes the installation. With the 36' side crossing the lane and about 3' of clearance per edge, and the 6' side capturing vehicles in the direction of travel, the layout fits wide industrial driveways, truck wash facilities, and large church or school parking lot entrances.

Features:

  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations

Specifications:

  • Loop type: Direct burial
  • Total loop length: 84'
  • Loop dimensions: 6' x 36'
  • Lead-in length: 200'
  • Wire gauge: 14 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 42'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL42-14-200?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 200'
Loop Length Size 6' X 36'
Total Loop Length 84'
SKU X-NL42-14-200
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
