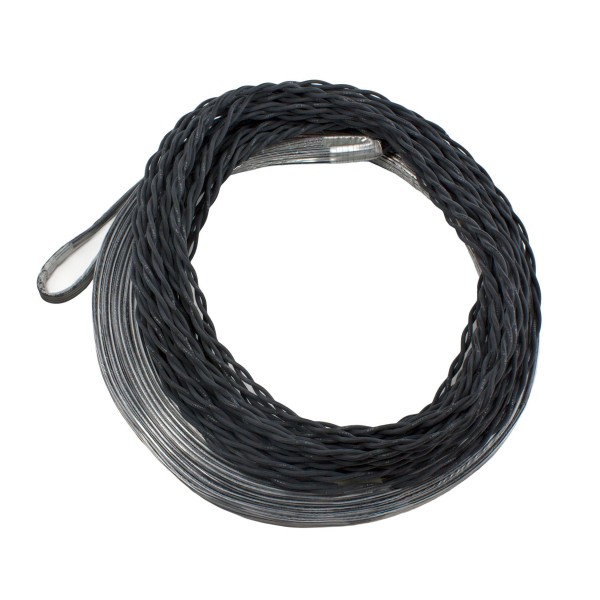

National Loop Co. 48' (6' X 18') Direct Burial Vehicle Detection Loop with 225' Lead-In for 24' Wide Driveways - X-NL24-14-225

National Loop Co. 48' (6' X 18') Direct Burial Vehicle Detection Loop with 225' Lead-In for 24' Wide Driveways - X-NL24-14-225

No batteries, no lenses, no line of sight, and the National Loop Co. 48' Direct Burial Vehicle Detection Loop with 225' of lead-in to reach the detector spots cars and trucks without any physical contact. Crews place it on the graded base, then pave right over it with asphalt, concrete, or gravel. A 6' x 18' arrangement gives it 48' of total wire, matching 24' wide driveways at church lots, small office entries, and 2-car-plus-walkway drives.
Part Number: X-NL24-14-225
$347.11 each $347.11 each
OR


Details

National Loop Co. 48' (6' X 18') Direct Burial Vehicle Detection Loop with 225' Lead-In for 24' Wide Driveways - X-NL24-14-225

Because it ships fully assembled in heavy-duty conduit, the National Loop Co. 48' Direct Burial Vehicle Detection Loop with 225' Lead-In is ready to lay down the moment the sub-base is graded. Wired to a compatible automated system, the loop detects the metal of any vehicle over the sensing area so the gate stops or reverses before contact. Since the conduit protects the wire, the loop sits directly on the sub-base and gets buried under the new asphalt, concrete, or gravel surface. Its 18' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to 2-car plus full walkway and church or small office lot entries.

Features:

  • Saves labor cost compared with winding a loop by hand in the field
  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment

Specifications:

  • Loop type: Direct burial
  • Total loop length: 48'
  • Loop dimensions: 6' x 18'
  • Lead-in length: 225'
  • Wire gauge: 14 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 24'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL24-14-225?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 225'
Loop Length Size 6' X 18'
Total Loop Length 48'
SKU X-NL24-14-225
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
