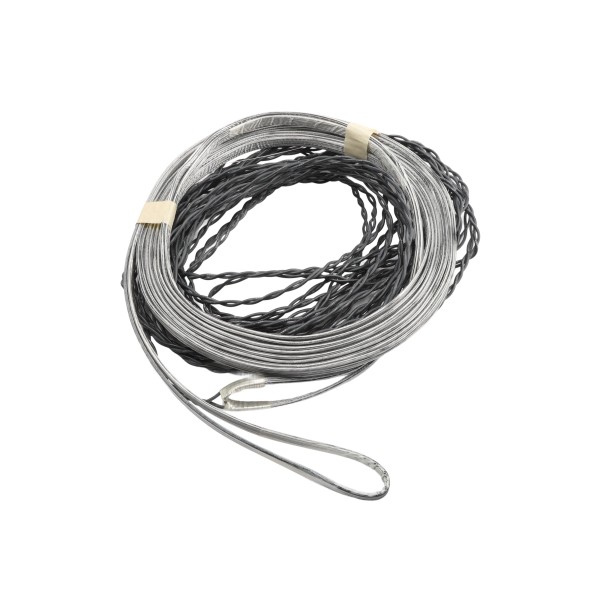

National Loop Co. 32' (4' X 12') Direct Burial Vehicle Detection Loop with 30' Lead-In for 16' Wide Driveways - X-NL16-14-30

National Loop Co. 32' (4' X 12') Direct Burial Vehicle Detection Loop with 30' Lead-In for 16' Wide Driveways - X-NL16-14-30

Monitoring the driveway around the clock, the National Loop Co. 32' Direct Burial Vehicle Detection Loop with 30' of lead-in to reach the detector provides the non-contact vehicle detection automatic gates rely on. It lays flat on the sub-base of a new drive or lot, and the paving material covers it completely. Its 4' x 12' shape adds up to 32' of wire, the right footprint for 16' wide driveways including small apartment building lots and everyday 2-car suburban drives.
Part Number: X-NL16-14-30
$159.03 each $159.03 each
OR

Details

National Loop Co. 32' (4' X 12') Direct Burial Vehicle Detection Loop with 30' Lead-In for 16' Wide Driveways - X-NL16-14-30

Placed before the paving crew arrives, the National Loop Co. 32' Direct Burial Vehicle Detection Loop with 30' Lead-In is a 14 AWG inductive loop that disappears under the finished surface. Once a loop detector reads its signal, the loop provides the non-contact vehicle detection automated gates rely on. The pave-over design means no slot cutting: the loop goes down on the graded base and the fresh surface finishes the installation. With the 12' side crossing the lane and about 2' of clearance per edge, and the 4' side capturing vehicles in the direction of travel, the layout fits common 2-car suburban driveways and small apartment building lots.

Features:

  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations

Specifications:

  • Loop type: Direct burial
  • Total loop length: 32'
  • Loop dimensions: 4' x 12'
  • Lead-in length: 30'
  • Wire gauge: 14 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 16'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL16-14-30?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 30'
Loop Length Size 4' X 12'
Total Loop Length 32'
SKU X-NL16-14-30
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
