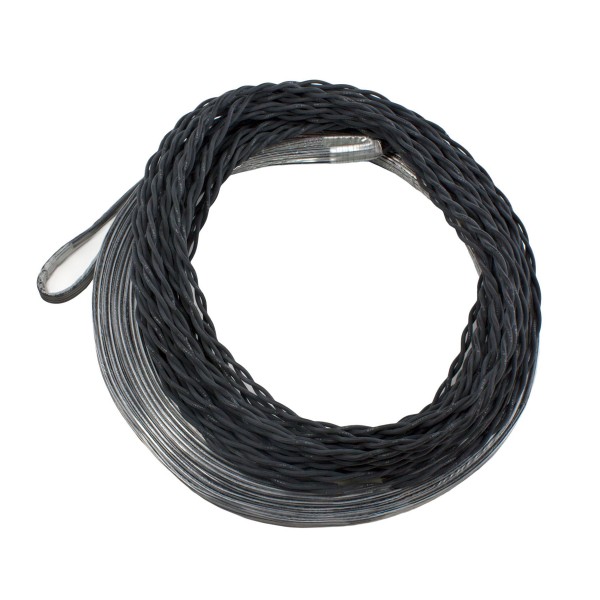

National Loop Co. 26' (4' X 9') Direct Burial Vehicle Detection Loop with 125' Lead-In for 13' Wide Driveways - X-NL13-14-125
Details
National Loop Co. 26' (4' X 9') Direct Burial Vehicle Detection Loop with 125' Lead-In for 13' Wide Driveways - X-NL13-14-125
Made for new paving projects, the National Loop Co. 26' Direct Burial Vehicle Detection Loop with 125' Lead-In is a factory-wound 14 AWG loop that installs flat on the graded sub-base. Once a loop detector reads its signal, the loop provides the non-contact vehicle detection automated gates rely on. Installation is a lay-and-pave job: set the loop on the graded sub-base, run the lead-in to the detector, and let the paving crew cover it. The 9' side covers the travel lane with roughly 2' of clearance on each side, and the 4' side reads vehicles as they roll through, making it a fit for single-car driveways with a walkway beside them and rural homes with truck access.
Features:
- Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
- One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
- Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
- Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
- Factory-set turn count means optimal read range without any on-site adjustment
- More cost-effective than hand-wound loop installations
Specifications:
- Loop type: Direct burial
- Total loop length: 26'
- Loop dimensions: 4' x 9'
- Lead-in length: 125'
- Wire gauge: 14 AWG
- Wire material: Polypropylene-wrapped copper wire
- Best-suited driveway width: 13'
- Manufacturer: National Loop Company (NLC)
- Made in America: Yes
| Loop Type | Direct Burial |
|---|---|
| Lead-In Length | 125' |
| Loop Length Size | 4' X 9' |
| Total Loop Length | 26' |
| SKU | X-NL13-14-125 |
| Product Type | Direct Burial Preformed Loop |
|
Made In America
Learn More About BABA Certification
|
Yes |
| Material | Polypropylene-Wrapped Copper Wires |
| Manufacturer | National Loop Company - NLC |
