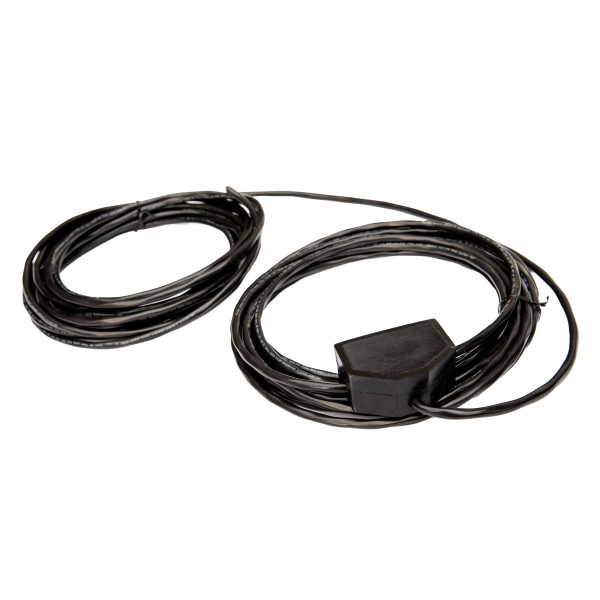

National Loop Co. 42' (6' X 15') Direct Burial Vehicle Detection Loop with 30' Lead-In for 21' Wide Driveways - K-NL21-14-30

National Loop Co. 42' (6' X 15') Direct Burial Vehicle Detection Loop with 30' Lead-In for 21' Wide Driveways - K-NL21-14-30

Where gates open for traffic on their own, the National Loop Co. 42' Direct Burial Vehicle Detection Loop with its 30' lead-in detects a vehicle the instant it rolls over the wire. Crews place it on the graded base, then pave right over it with asphalt, concrete, or gravel. A 6' x 15' arrangement gives it 42' of total wire, matching 21' wide driveways at wider rural and farm gate entrances plus room for guest parking.
Part Number: K-NL21-14-30
$205.55 each $205.55 each
OR


Details

National Loop Co. 42' (6' X 15') Direct Burial Vehicle Detection Loop with 30' Lead-In for 21' Wide Driveways - K-NL21-14-30

Because it ships fully assembled in heavy-duty conduit, the National Loop Co. 42' Direct Burial Vehicle Detection Loop with 30' Lead-In is ready to lay down the moment the sub-base is graded. Working through a compatible loop detector, it detects the metal mass of vehicles overhead. Crews place the loop on the prepared sub-base before paving, and the new asphalt, concrete, or gravel surface locks it in place. Formed as a 6' x 15' rectangle, it centers in the lane with about 3' of clearance per edge, a proportion that suits 2-car plus guest parking and wider rural/farm gate entrances.

Features:

  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations

Specifications:

  • Loop type: Direct burial
  • Total loop length: 42'
  • Loop dimensions: 6' x 15'
  • Lead-in length: 30'
  • Wire gauge: 14 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 21'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number K-NL21-14-30?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 30'
Loop Length Size 6' X 15'
Total Loop Length 42'
SKU K-NL21-14-30
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
