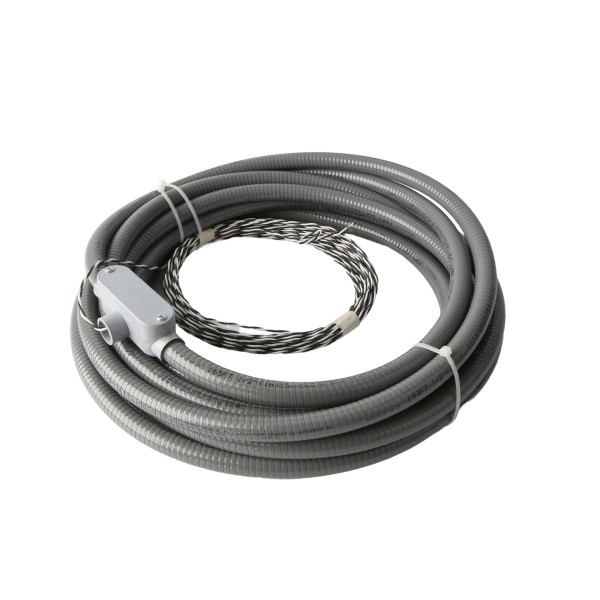

National Loop Co. 88' (6' X 38') Direct Burial Vehicle Detection Loop with 30' Lead-In for 44' Wide Driveways - E-NL44-18-30

National Loop Co. 88' (6' X 38') Direct Burial Vehicle Detection Loop with 30' Lead-In for 44' Wide Driveways - E-NL44-18-30

The National Loop Co. 88' Direct Burial Vehicle Detection Loop with its 30' lead-in feels the metal of a passing vehicle through the surface. It lays flat on the sub-base of a new drive or lot, and the paving material covers it completely. Its 6' x 38' shape adds up to 88' of wire, the right footprint for 44' wide driveways including warehouse entrances, farm commodity yards, and municipal drives.
Part Number: E-NL44-18-30
$291.13 each $291.13 each
OR


Details

National Loop Co. 88' (6' X 38') Direct Burial Vehicle Detection Loop with 30' Lead-In for 44' Wide Driveways - E-NL44-18-30

Contractors laying new asphalt, concrete, or gravel can set the National Loop Co. 88' Direct Burial Vehicle Detection Loop with 30' Lead-In directly on the sub-base and pave right over it. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse. Crews place the loop on the prepared sub-base before paving, and the new asphalt, concrete, or gravel surface locks it in place. Its 38' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to logistics/warehouse entrances, large farm commodity yards, and wide municipal entries.

Features:

  • Fully assembled at the factory, so there is nothing to wind, count, or connect before paving
  • Predetermined number of turns removes the guesswork of achieving optimal read range
  • Saves labor cost compared with winding a loop by hand in the field
  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather

Specifications:

  • Loop type: Direct burial
  • Total loop length: 88'
  • Loop dimensions: 6' x 38'
  • Lead-in length: 30'
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 44'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL44-18-30?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 30'
Loop Length Size 6' X 38'
Total Loop Length 88'
SKU E-NL44-18-30
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
