National Loop Co. 76' (6' X 32') Direct Burial Vehicle Detection Loop with 200' Lead-In for 38' Wide Driveways - E-NL38-18-200

National Loop Co. 76' (6' X 32') Direct Burial Vehicle Detection Loop with 200' Lead-In for 38' Wide Driveways - E-NL38-18-200

The National Loop Co. 76' Direct Burial Vehicle Detection Loop with 200' Lead-In turns passing traffic into gate commands, opening for cars and trucks without a keypad or remote. Crews place it on the sub-base of a new drive or lot, then pave right over it with asphalt, concrete, or gravel. Total wire runs 76' in a 6' x 32' layout, with 18 AWG conductors sized to 38' wide driveways at grain elevators, agricultural co-ops, and wide equipment yards, while its 200' lead-in covers long runs to the detector.
Part Number: E-NL38-18-200
$362.15 each $362.15 each
OR

Details

National Loop Co. 76' (6' X 32') Direct Burial Vehicle Detection Loop with 200' Lead-In for 38' Wide Driveways - E-NL38-18-200

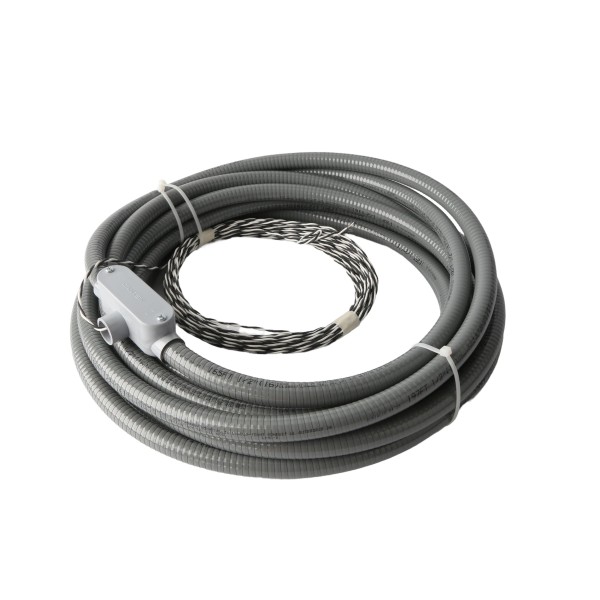

For driveways getting a fresh surface, the National Loop Co. 76' Direct Burial Vehicle Detection Loop with 200' Lead-In provides vehicle detection without cutting into the finished pavement. Wired to a compatible automated system, the loop detects the metal of any vehicle over the sensing area so the gate stops or reverses before contact. Because it ships encased in heavy-duty, liquid-tight conduit, the loop lays directly on the graded sub-base and is then paved over under fresh asphalt, concrete, or gravel. The 32' side covers the travel lane with roughly 3' of clearance on each side, and the 6' side reads vehicles as they roll through, making it a fit for wide equipment yards, grain elevators, agricultural co-op entrances, and large commercial plaza entries.

Features:

  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations
  • Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters
  • Wound from one continuous, non-spliced wire, leaving no splice point between the loop and lead-in to fail

Specifications:

  • Loop type: Direct burial
  • Total loop length: 76'
  • Loop dimensions: 6' x 32'
  • Lead-in length: 200'
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 38'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL38-18-200?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 200'
Loop Length Size 6' X 32'
Total Loop Length 76'
SKU E-NL38-18-200
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
