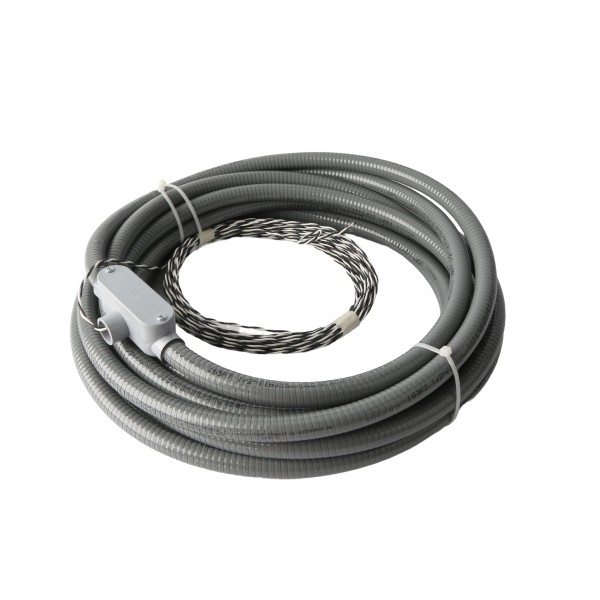

National Loop Co. 76' (6' X 32') Direct Burial Vehicle Detection Loop with 175' Lead-In for 38' Wide Driveways - E-NL38-18-175

National Loop Co. 76' (6' X 32') Direct Burial Vehicle Detection Loop with 175' Lead-In for 38' Wide Driveways - E-NL38-18-175

Monitoring the driveway around the clock, the National Loop Co. 76' Direct Burial Vehicle Detection Loop with its 175' lead-in covers the lane with dependable non-contact detection. No saw cutting is involved, since the wire sits beneath the new surface as it is poured or laid. Its footprint of 6' x 32' yields 76' of wire, a fit for 38' wide driveways including grain elevators, agricultural co-ops, and wide equipment yards.
Part Number: E-NL38-18-175
$350.64 each $350.64 each
OR

Details

National Loop Co. 76' (6' X 32') Direct Burial Vehicle Detection Loop with 175' Lead-In for 38' Wide Driveways - E-NL38-18-175

For driveways getting a fresh surface, the National Loop Co. 76' Direct Burial Vehicle Detection Loop with 175' Lead-In provides vehicle detection without cutting into the finished pavement. Wired to a compatible automated system, the loop detects the metal of any vehicle over the sensing area so the gate stops or reverses before contact. Since the conduit protects the wire, the loop sits directly on the sub-base and gets buried under the new asphalt, concrete, or gravel surface. Its 32' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to wide equipment yards, grain elevators, agricultural co-op entrances, and large commercial plaza entries.

Features:

  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations

Specifications:

  • Loop type: Direct burial
  • Total loop length: 76'
  • Loop dimensions: 6' x 32'
  • Lead-in length: 175'
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 38'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL38-18-175?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 175'
Loop Length Size 6' X 32'
Total Loop Length 76'
SKU E-NL38-18-175
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
