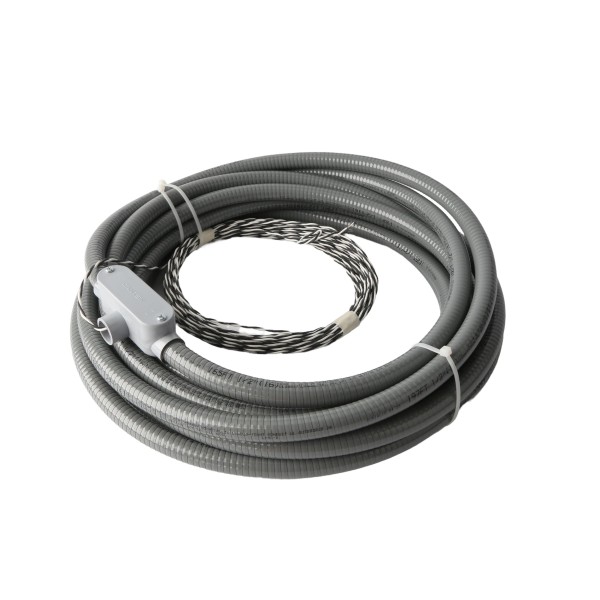

National Loop Co. 68' (6' X 28') Direct Burial Vehicle Detection Loop with 75' Lead-In for 34' Wide Driveways - E-NL34-18-75

National Loop Co. 68' (6' X 28') Direct Burial Vehicle Detection Loop with 75' Lead-In for 34' Wide Driveways - E-NL34-18-75

Behind every loop detector sits a coil of wire, and the National Loop Co. 68' Direct Burial Vehicle Detection Loop with 75' of lead-in to reach the detector spots cars and trucks without any physical contact. Rather than cutting finished pavement, you set it on the base and let the new surface lock it in. At 68' of total loop length, the 6' x 28' layout fits 34' wide driveways, from large estate entrances and industrial or municipal lots.
Part Number: E-NL34-18-75
$264.79 each $264.79 each
OR


Details

National Loop Co. 68' (6' X 28') Direct Burial Vehicle Detection Loop with 75' Lead-In for 34' Wide Driveways - E-NL34-18-75

Every new paving project gains reliable vehicle detection with the National Loop Co. 68' Direct Burial Vehicle Detection Loop with 75' Lead-In, a preformed 18 AWG inductive loop. Wired to a compatible automated system, the loop detects the metal of any vehicle over the sensing area so the gate stops or reverses before contact. The pave-over design means no slot cutting: the loop goes down on the graded base and the fresh surface finishes the installation. Its 28' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to industrial or municipal lots and large estate entrances.

Features:

  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations

Specifications:

  • Loop type: Direct burial
  • Total loop length: 68'
  • Loop dimensions: 6' x 28'
  • Lead-in length: 75'
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 34'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL34-18-75?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 75'
Loop Length Size 6' X 28'
Total Loop Length 68'
SKU E-NL34-18-75
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
