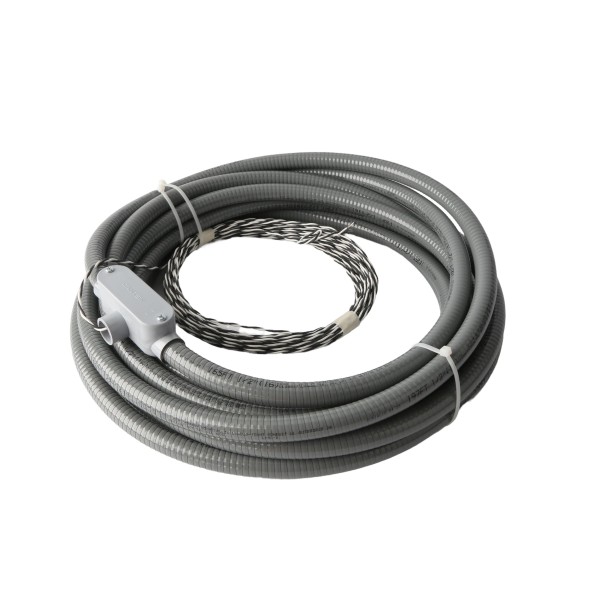

National Loop Co. 68' (6' X 28') Direct Burial Vehicle Detection Loop with 30' Lead-In for 34' Wide Driveways - E-NL34-18-30

Skip the slot cutting entirely: the National Loop Co. 68' Direct Burial Vehicle Detection Loop with 30' Lead-In lays on the sub-base and gets paved over with the new surface. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse, providing one of the two means of entrapment protection UL 325 requires for automated gates. Crews place the loop on the prepared sub-base before paving, and the new asphalt, concrete, or gravel surface locks it in place. Its 28' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to industrial or municipal lots and large estate entrances.

Features:

• One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
• Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
• Arrives fully assembled and ready to install under new asphalt, concrete, or gravel
• Factory-set turn count means optimal read range without any on-site adjustment
• More cost-effective than hand-wound loop installations
• Fills the non-contact detection role UL 325 assigns to vehicle loops in a 2-device entrapment protection system
• Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters

Specifications:

• Loop type: Direct burial
• Total loop length: 68'
• Loop dimensions: 6' x 28'
• Lead-in length: 30'
• Wire gauge: 18 AWG
• Wire material: Polypropylene-wrapped copper wire
• Best-suited driveway width: 34'
• Manufacturer: National Loop Company (NLC)
• Made in America: Yes
