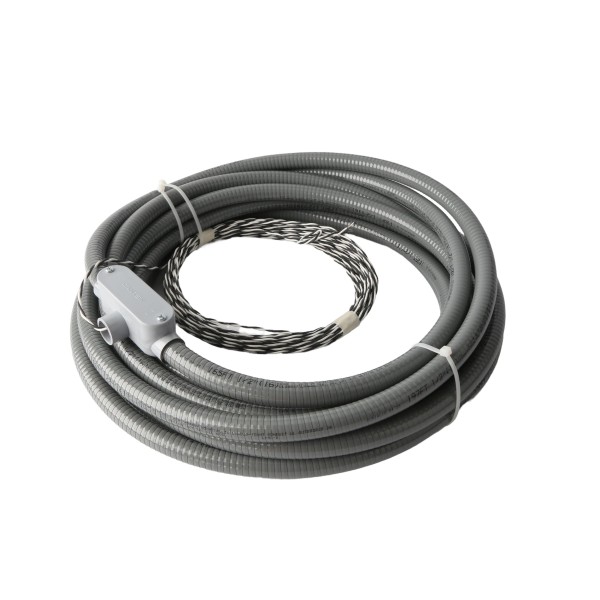

National Loop Co. 68' (6' X 28') Direct Burial Vehicle Detection Loop with 175' Lead-In for 34' Wide Driveways - E-NL34-18-175

National Loop Co. 68' (6' X 28') Direct Burial Vehicle Detection Loop with 175' Lead-In for 34' Wide Driveways - E-NL34-18-175

Day or night, the National Loop Co. 68' Direct Burial Vehicle Detection Loop with its 175' lead-in detects a vehicle the instant it rolls over the wire. Crews place it on the graded base, then pave right over it with asphalt, concrete, or gravel. A 6' x 28' arrangement gives it 68' of total wire, matching 34' wide driveways at large estate entrances and industrial or municipal lots.
Part Number: E-NL34-18-175
$329.99 each $329.99 each
OR


Details

National Loop Co. 68' (6' X 28') Direct Burial Vehicle Detection Loop with 175' Lead-In for 34' Wide Driveways - E-NL34-18-175

Contractors laying new asphalt, concrete, or gravel can set the National Loop Co. 68' Direct Burial Vehicle Detection Loop with 175' Lead-In directly on the sub-base and pave right over it. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse. Because it ships encased in heavy-duty, liquid-tight conduit, the loop lays directly on the graded sub-base and is then paved over under fresh asphalt, concrete, or gravel. Its 28' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to industrial or municipal lots and large estate entrances.

Features:

  • Factory-set turn count means optimal read range without any on-site adjustment
  • More cost-effective than hand-wound loop installations
  • Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters
  • Wound from one continuous, non-spliced wire, leaving no splice point between the loop and lead-in to fail
  • Heavy-duty, liquid-tight conduit shields the loop from sharp stones, chemicals, ground heaving, and harsh weather
  • Fully assembled at the factory, so there is nothing to wind, count, or connect before paving

Specifications:

  • Loop type: Direct burial
  • Total loop length: 68'
  • Loop dimensions: 6' x 28'
  • Lead-in length: 175'
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 34'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL34-18-175?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 175'
Loop Length Size 6' X 28'
Total Loop Length 68'
SKU E-NL34-18-175
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
