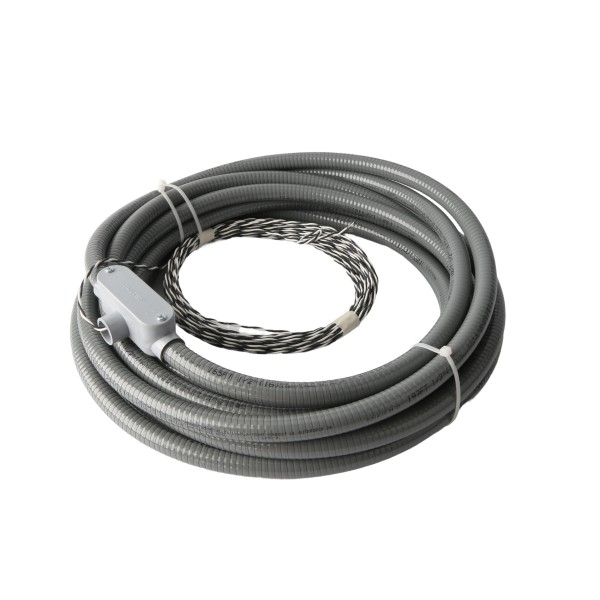

National Loop Co. 42' (6' X 15') Direct Burial Vehicle Detection Loop with 250' Lead-In for 21' Wide Driveways - E-NL21-18-250

National Loop Co. 42' (6' X 15') Direct Burial Vehicle Detection Loop with 250' Lead-In for 21' Wide Driveways - E-NL21-18-250

Keeping an automatic gate both safe and convenient, the National Loop Co. 42' Direct Burial Vehicle Detection Loop with 250' of lead-in wire monitors the drive for traffic of any size. Pave-over installation keeps it out of sight, with the wire resting under the finish layer of asphalt, concrete, or gravel. Formed as a 6' x 15' rectangle with 42' of perimeter, it matches the 21' drives found at 2-car drives with guest parking and wider rural or farm gate entrances.
Part Number: E-NL21-18-250
$295.79 each $295.79 each
OR

Details

National Loop Co. 42' (6' X 15') Direct Burial Vehicle Detection Loop with 250' Lead-In for 21' Wide Driveways - E-NL21-18-250

Skip the slot cutting entirely: the National Loop Co. 42' Direct Burial Vehicle Detection Loop with 250' Lead-In lays on the sub-base and gets paved over with the new surface. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse. Installation is a lay-and-pave job: set the loop on the graded sub-base, run the lead-in to the detector, and let the paving crew cover it. Its 15' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to 2-car plus guest parking and wider rural/farm gate entrances.

Features:

  • Predetermined number of turns removes the guesswork of achieving optimal read range
  • Saves labor cost compared with winding a loop by hand in the field
  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced wire runs through the loop turns and lead-in, eliminating splice failures
  • Liquid-tight conduit stands between the wire and sharp stones, chemicals, ground movement, and harsh weather
  • Arrives fully assembled and ready to install under new asphalt, concrete, or gravel

Specifications:

  • Loop type: Direct burial
  • Total loop length: 42'
  • Loop dimensions: 6' x 15'
  • Lead-in length: 250'
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 21'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number E-NL21-18-250?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Direct Burial
Lead-In Length 250'
Loop Length Size 6' X 15'
Total Loop Length 42'
SKU E-NL21-18-250
Product Type Direct Burial Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
