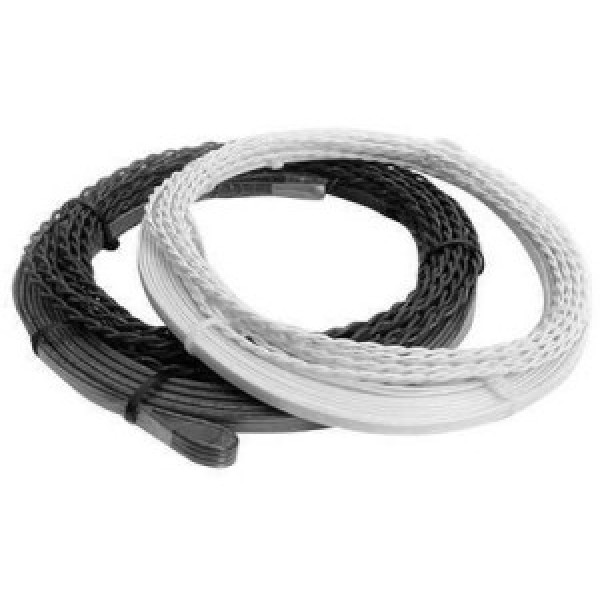

National Loop Co. 60' (6' X 24') Saw Cut Vehicle Detection Loop with 30' Lead-In for 30' Wide Driveways - P-NL30-18-30

The National Loop Co. 60' Saw Cut Vehicle Detection Loop with 30' Lead-In is a preformed 18 AWG inductive vehicle detection loop that arrives ready to drop into a saw-cut slot. Connected to a loop detector, it reports every vehicle that crosses the sensing area, giving the gate operator the non-contact detection that fills one of the two UL 325 entrapment protection slots. Installation calls for sawing a 1/8" slot 1" deep into existing asphalt or concrete, laying the loop in the slot, and sealing it, with no hand-winding or turn counting required. Its 24' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to double-wide commercial entrances, equipment yards, and storage facilities.

Features:

• Factory-set turn count means optimal read range without any on-site adjustment
• Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
• Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
• More cost-effective than hand-wound loop installations
• Fills the non-contact detection role UL 325 assigns to vehicle loops in a 2-device entrapment protection system
• Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters
• Wound from one continuous, non-spliced length of Polypropylene-insulated wire, leaving no splice point between the loop and lead-in to fail

Specifications:

• Loop type: Saw cut
• Total loop length: 60'
• Loop dimensions: 6' x 24'
• Lead-in length: 30'
• Slot size: 1/8" wide x 1" deep
• Wire gauge: 18 AWG
• Wire material: Polypropylene-wrapped copper wire
• Best-suited driveway width: 30'
• Manufacturer: National Loop Company (NLC)
• Made in America: Yes
