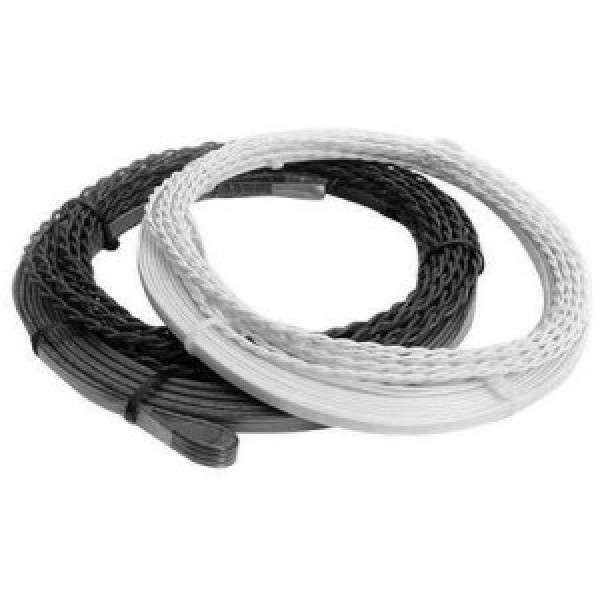

National Loop Co. 52' (6' X 20') Saw Cut Vehicle Detection Loop with 225' Lead-In for 26' Wide Driveways - P-NL26-18-225

Gate installers can turn an existing driveway into part of the safety system with the National Loop Co. 52' Saw Cut Vehicle Detection Loop with 225' Lead-In, a preformed 18 AWG inductive loop. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse, providing one of the two means of entrapment protection UL 325 requires for automated gates. Installers saw a 1/8" by 1" deep slot into the existing surface, drop the prewound loop in, and seal the slot against moisture. Its 20' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to 3-car-wide residential drives and light commercial entries.

Features:

• Predetermined number of machine-wound turns removes the guesswork of achieving optimal read range
• Neatly stacked turns accept loop sealant completely, locking out moisture for long service life
• Optimizes read range, eliminates faulty signals, and minimizes callbacks
• Saves labor cost compared with winding a loop by hand in the field
• Provides the non-contact vehicle detection UL 325 gate systems count toward their two required means of entrapment protection
• Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
• One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures

Specifications:

• Loop type: Saw cut
• Total loop length: 52'
• Loop dimensions: 6' x 20'
• Lead-in length: 225'
• Slot size: 1/8" wide x 1" deep
• Wire gauge: 18 AWG
• Wire material: Polypropylene-wrapped copper wire
• Best-suited driveway width: 26'
• Manufacturer: National Loop Company (NLC)
• Made in America: Yes
