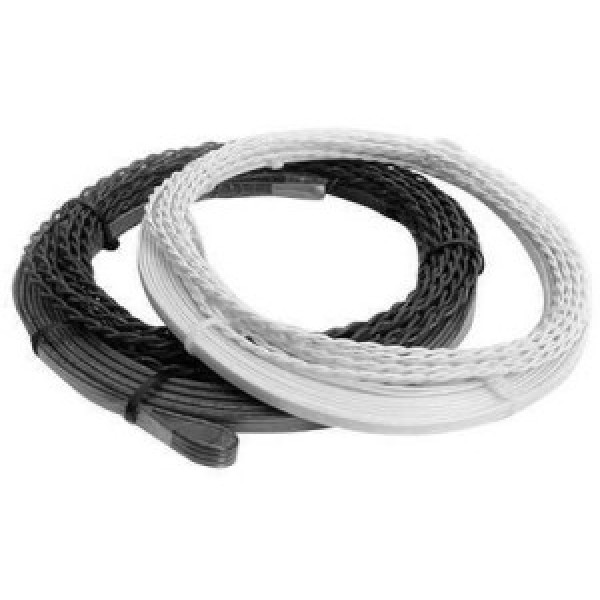

National Loop Co. 26' (4' X 9') Saw Cut Vehicle Detection Loop with 225' Lead-In for 13' Wide Driveways - P-NL13-18-225

Retrofit projects move faster with the National Loop Co. 26' Saw Cut Vehicle Detection Loop with 225' Lead-In, a preformed 18 AWG loop that eliminates on-site wire winding. Paired with a compatible loop detector, it senses the metal mass of a passing car or truck and signals the gate operator to open, hold, or reverse, providing one of the two means of entrapment protection UL 325 requires for automated gates. The install method is a 1/8" wide, 1" deep saw cut in the existing asphalt or concrete, with the loop laid in and sealed to finish the job. With the 9' side crossing the lane and about 2' of clearance per edge, and the 4' side capturing vehicles in the direction of travel, the layout fits single-car driveways with a walkway beside them and rural homes with truck access.

Features:

• Saves labor cost compared with winding a loop by hand in the field
• Provides the non-contact vehicle detection UL 325 gate systems count toward their two required means of entrapment protection
• Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
• One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
• Factory-set turn count means optimal read range without any on-site adjustment
• Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
• Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding

Specifications:

• Loop type: Saw cut
• Total loop length: 26'
• Loop dimensions: 4' x 9'
• Lead-in length: 225'
• Slot size: 1/8" wide x 1" deep
• Wire gauge: 18 AWG
• Wire material: Polypropylene-wrapped copper wire
• Best-suited driveway width: 13'
• Manufacturer: National Loop Company (NLC)
• Made in America: Yes
