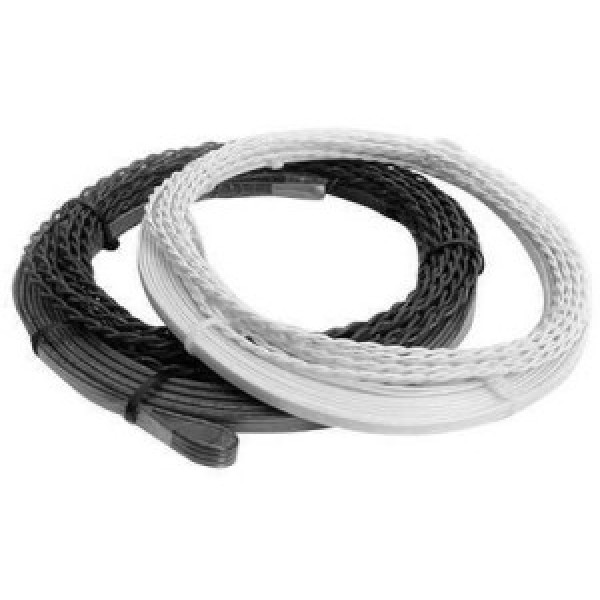

National Loop Co. 26' (4' X 9') Saw Cut Vehicle Detection Loop with 200' Lead-In for 13' Wide Driveways - P-NL13-18-200

Sized to match a specific driveway width, the National Loop Co. 26' Saw Cut Vehicle Detection Loop with 200' Lead-In is a factory-wound 18 AWG loop for retrofit installations. Teamed with a loop detector, it gives the gate operator the presence detection UL 325 counts as one of its two means of entrapment protection, so the gate reverses or holds open while a vehicle sits in the path. Fitting takes one shallow saw cut: a 1/8" slot, 1" deep, cleaned out, filled with the loop, and sealed with loop sealant. With the 9' side crossing the lane and about 2' of clearance per edge, and the 4' side capturing vehicles in the direction of travel, the layout fits single-car driveways with a walkway beside them and rural homes with truck access.

Features:

• One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
• Factory-set turn count means optimal read range without any on-site adjustment
• Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
• Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
• More cost-effective than hand-wound loop installations
• Fills the non-contact detection role UL 325 assigns to vehicle loops in a 2-device entrapment protection system
• Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters

Specifications:

• Loop type: Saw cut
• Total loop length: 26'
• Loop dimensions: 4' x 9'
• Lead-in length: 200'
• Slot size: 1/8" wide x 1" deep
• Wire gauge: 18 AWG
• Wire material: Polypropylene-wrapped copper wire
• Best-suited driveway width: 13'
• Manufacturer: National Loop Company (NLC)
• Made in America: Yes
