National Loop Co. 26' (4' X 9') Saw Cut Vehicle Detection Loop with 175' Lead-In for 13' Wide Driveways - P-NL13-18-175

National Loop Co. 26' (4' X 9') Saw Cut Vehicle Detection Loop with 175' Lead-In for 13' Wide Driveways - P-NL13-18-175

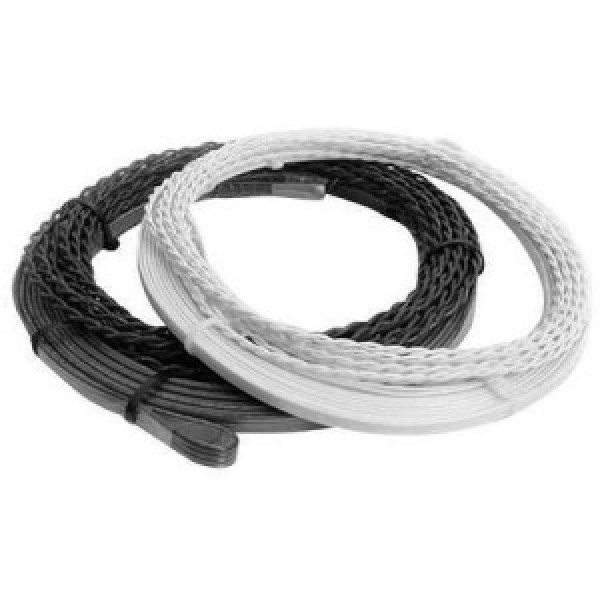

The National Loop Co. 26' Saw Cut Vehicle Detection Loop with 175' Lead-In provides hands-free vehicle detection for automatic gates. Gate safety depends on this kind of sensing. A saw, a 1" cut, and a bead of sealant put this loop to work in finished asphalt or concrete. The 4' x 9' rectangle puts 26' of 18 AWG detection wire to work across 13' wide driveways at single-car drives with a walkway alongside and rural homes with truck access.
Part Number: P-NL13-18-175
$186.03 each $186.03 each
OR


Details

National Loop Co. 26' (4' X 9') Saw Cut Vehicle Detection Loop with 175' Lead-In for 13' Wide Driveways - P-NL13-18-175

Contractors reach for the National Loop Co. 26' Saw Cut Vehicle Detection Loop with 175' Lead-In when an existing asphalt or concrete drive needs reliable vehicle detection. Wired to a compatible automated system, the loop detects the metal of any vehicle over the sensing area so the gate stops or reverses before contact. Fitting takes one shallow saw cut: a 1/8" slot, 1" deep, cleaned out, filled with the loop, and sealed with loop sealant. With the 9' side crossing the lane and about 2' of clearance per edge, and the 4' side capturing vehicles in the direction of travel, the layout fits single-car driveways with a walkway beside them and rural homes with truck access.

Features:

  • Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
  • More cost-effective than hand-wound loop installations
  • Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters
  • Wound from one continuous, non-spliced length of Polypropylene-insulated wire, leaving no splice point between the loop and lead-in to fail
  • Predetermined number of machine-wound turns removes the guesswork of achieving optimal read range
  • Neatly stacked turns accept loop sealant completely, locking out moisture for long service life

Specifications:

  • Loop type: Saw cut
  • Total loop length: 26'
  • Loop dimensions: 4' x 9'
  • Lead-in length: 175'
  • Slot size: 1/8" wide x 1" deep
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 13'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number P-NL13-18-175?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Saw Cut
Lead-In Length 175'
Loop Length Size 4' X 9'
Total Loop Length 26'
Wire Size 1/8"
SKU P-NL13-18-175
Product Type Saw Cut Preformed Loop
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Access Control, Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Material Polypropylene-Wrapped Copper Wires
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
