National Loop Co. 88' (6' X 38') Saw Cut Vehicle Detection Loop with Custom Length Lead-In for 44' Wide Driveways - P-NL44-18

National Loop Co. 88' (6' X 38') Saw Cut Vehicle Detection Loop with Custom Length Lead-In for 44' Wide Driveways - P-NL44-18

The National Loop Co. 88' Saw Cut Vehicle Detection Loop with a custom length lead-in senses the metal of any car or truck that crosses it. Fitting it takes a concrete saw, a 1" slot in the driveway surface, and a bead of sealant over the top. Its footprint of 6' x 38' yields 88' of wire, a fit for 44' wide driveways including logistics and warehouse entrances, large farm commodity yards, and wide municipal entries.
Part Number: P-NL44-18

* Required Fields

$216.31 each $216.31 each

Price From: $216.31

Details

National Loop Co. 88' (6' X 38') Saw Cut Vehicle Detection Loop with Custom Length Lead-In for 44' Wide Driveways - P-NL44-18

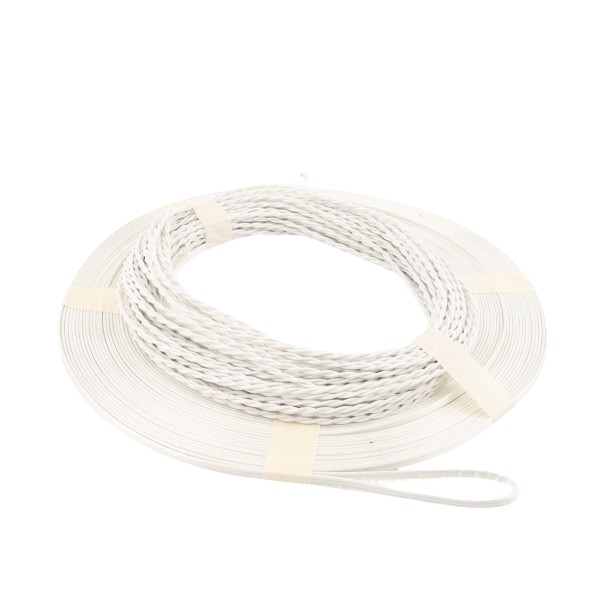

Made for gate and access-control upgrades, the National Loop Co. 88' Saw Cut Vehicle Detection Loop with Custom Length Lead-In is an 18 AWG inductive loop, machine-wound and ready to seal into existing pavement. Connected to a loop detector, it reports every vehicle that crosses the sensing area, giving the gate operator dependable non-contact detection. Setup is a 3-step process: saw a 1/8" slot 1" deep in the pavement, press the loop in, and seal over it. Its 38' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to logistics/warehouse entrances, large farm commodity yards, and wide municipal entries.

Features:

  • One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
  • Factory-set turn count means optimal read range without any on-site adjustment
  • Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
  • Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
  • More cost-effective than hand-wound loop installations
  • Designed for vehicle detection with gate operators, parking barrier gates, overhead doors, traffic signals, arming devices, and vehicle counters

Specifications:

  • Loop type: Saw cut
  • Total loop length: 88'
  • Loop dimensions: 6' x 38'
  • Lead-in length: Custom length
  • Slot size: 1/8" wide x 1" deep
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 44'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number P-NL44-18?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Saw Cut
Loop Length Size 6' X 38'
Total Loop Length 88'
Wire Size 1/8"
SKU P-NL44-18
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Access Control, Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Manufacturer National Loop Company - NLC
