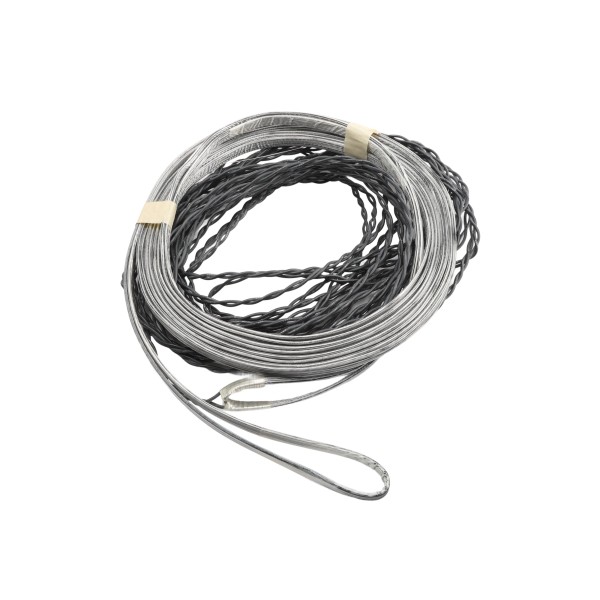

National Loop Co. 84' (6' X 36') Saw Cut Vehicle Detection Loop with Custom Length Lead-In for 42' Wide Driveways - X-NL42-18

National Loop Co. 84' (6' X 36') Saw Cut Vehicle Detection Loop with Custom Length Lead-In for 42' Wide Driveways - X-NL42-18

Monitoring the driveway around the clock, the National Loop Co. 84' Saw Cut Vehicle Detection Loop with its custom length lead-in supplies the vehicle detection gate systems rely on. Fitting it takes a concrete saw, a 1" slot in the driveway surface, and a bead of sealant over the top. Its footprint of 6' x 36' yields 84' of wire, a fit for 42' wide driveways including truck washes and large church or school lot entrances.
Part Number: X-NL42-18

* Required Fields

$246.62 each $246.62 each

Price From: $246.62

Details

National Loop Co. 84' (6' X 36') Saw Cut Vehicle Detection Loop with Custom Length Lead-In for 42' Wide Driveways - X-NL42-18

Contractors reach for the National Loop Co. 84' Saw Cut Vehicle Detection Loop with Custom Length Lead-In when an existing asphalt or concrete drive needs reliable vehicle detection. Working through a compatible loop detector, it detects the metal mass of vehicles above. Setup is a 3-step process: saw a 3/16" slot 1" deep in the pavement, press the loop in, and seal over it. Its 36' side spans the travel lane while the 6' side runs in the direction of traffic, leaving roughly 3' of clearance on each edge, an arrangement well suited to wide industrial driveways, truck wash facilities, and large church or school parking lot entrances.

Features:

  • Works wherever vehicles need detecting: automatic gates, parking barriers, overhead doors, traffic signals, arming devices, and vehicle counters
  • One continuous, non-spliced Polypropylene-insulated wire runs through the loop turns and lead-in, eliminating splice failures
  • Factory-set turn count means optimal read range without any on-site adjustment
  • Precisely stacked wires let loop sealant fully encapsulate the loop for lasting weather protection
  • Cuts down on faulty detection calls and repeat service trips thanks to consistent machine winding
  • More cost-effective than hand-wound loop installations

Specifications:

  • Loop type: Saw cut
  • Total loop length: 84'
  • Loop dimensions: 6' x 36'
  • Lead-in length: Custom length
  • Slot size: 3/16" wide x 1" deep
  • Wire gauge: 18 AWG
  • Wire material: Polypropylene-wrapped copper wire
  • Best-suited driveway width: 42'
  • Manufacturer: National Loop Company (NLC)
  • Made in America: Yes
Prefer to Call? (888) 378-1175

Questions about part number X-NL42-18?

Required Fields *

Name *

Email *

Phone

My Questions *

Loop Type Saw Cut
Loop Length Size 6' X 36'
Total Loop Length 84'
Wire Size 3/16"
SKU X-NL42-18
Made In America Tooltip
Learn More About BABA Certification
Yes
Ideal Application Access Control, Arming Devices, Gate Operators, Overhead Doors, Parking Barrier Gates, Traffic Signals, Vehicle Counters
Manufacturer National Loop Company - NLC
Specification Sheet Download PDF file
